Supplier for Fortune 500 companiesWall Mount Monitor Panel PC By Vesa
There is a easy install way everyone knows. That’s wall mount.
But if you want the monitor as flat as wall. It must be embedded into it.
Like smart home, supermarket, hospital, some design architectural all need the monitor embedded in wall to make it looks elegant and in good taste.
But sometimes you can not install it behind the wall.
That’s a problem. There is a example may help you.

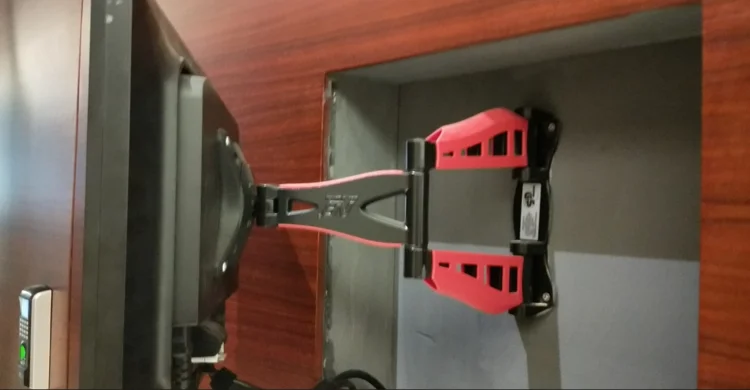

As Seeing this picture, your spiritual light flashed, and you already know how to do, right?
Open a hole on wall. Depend on the monitor size, choose the hole size.
For example,15 inch panel pc, open a hole of 350*274*height 65mm.
The height depend on the vesa stand you use. This one is 65mm.
Ok its easy to slove down.
You are clever than me.
You must have more solutions of how to embedded the panel mount on wall.
Welcome to share you idea.
And about the vesa bracket stand. you can buy yourself or from us.
bracket stand price is around $5-10 for 7-24 inch monitor. total will cost extra $18-30 given that shipping.
Or ou can search to buy: Universal Adjustable Extension Arm Tilting Swivel TV Monitor Stand Bracket Wall Mount
Better and must to choose metal material if you use in Japan because of the earthquake prone countries.
By the way, there is a problem you want to know.
How to start in on the panel pc or monitor?
We support set up auto power on.
You can check this link or message to our team.
When you order from us, we can set it up when producing.
Its a sliver rim on picture. And 12.1 inch, We also have the black one.
Welcome to message us to have the catalogue and size chart.
Below its spc. Of the 13.3 inch black embedded panel pc.
Contact us if you need other style or different size panel pc.
13.3 inch Capacitive Touch Industrial All-In-One PC
Model：ZPC133-S112
Specification：
|
Parameter |
||
|
Host Configuration Parameter |
Mainboard Type |
Industrial Mainboard |
|
CPU |
Intel® Celeron® J1900, Quad-core, 2GHz, TDP 10W |
|
|
RAM |
4GB (Support DDR3L-1333 MHz, 1 * SO-DIMM Slot,Up to 8GB) |
|
|
SSD |
64GB |
|
|
USB |
1*USB3.0，3*USB2.0（add two extra USB2.0 optional） |
|
|
HDMI |
1 * HDMI |
|
|
COM Port |
2 * COM (RS232/422/485 auto-flow) |
|
|
VGA |
1 *VGA |
|
|
LAN |
1* Realtek PCI-E NIC RTL8111F （10/100/1000Mbps） |
|
|
AUDIO |
Realtek ALC662 5.1 Channel HDA Codec , Support MIC/Line-out Ports |
|
|
Power |
12V DC_IN Power Input Connector |
|
|
WIFI |
Optional |
|
|
OS |
Windows/Linux，Preinstalled Win10 64bit |
|
|
Touch Screen |
Type |
PCAP Touch |
|
Respond Time |
≤5ms |
|
|
Luminousness |
85±5% |
|
|
Surface Hardness |
6H |
|
|
Click Lifetime |
50 millions times |
|
|
Anti Static Pressure |
5kg/cm2 |
|
|
Communication Interface |
USB interface |
|
|
Display Screen |
Type |
13.3inches |
|
Interface |
LVDS |
|
|
Backlight |
LED |
|
|
Backlight MTBF |
50000h |
|
|
Resolution |
1920*1080 |
|
|
Brightness |
300cd |
|
|
Dynamic Contrast |
1000:1 |
|
|
Viewing Angle |
R/L:65(Typ.), U/D:65(Typ) |
|
|
Environmental Parameters |
Operating Temperature |
-10－+60 |
|
Storage Temperature |
-20－+70 |
|
|
Relative Humidity |
20%－90% |
|
|
General Parameters |
Outline Dimension |
|
|
Display Dimension |
294.2mm×165.7mm(L*W) |
|
|
Hole Size |
326.3mm×198mm(L*W) |
|
|
Shell Material |
Metal plate |
|
|
Installation Type |
Embedded,Wall-Mounted,Desktop,VESA |
|
|
Product Model |
Product description |
|
ZPC133-S112 |
13.3inch PCAP touch All-In-One PC/ Resolution 1920*1080/ Windows10 64bit/ CPU J1900/RAM 4G /SSD 64GB |
Accessories：
|
Product Name |
Specification |
|
Product Name |
Specification |
|
Mounting strip |
2 PCS |
|
Power Cable |
3M /5M |
|
Adapter |
12V/5A |
|
Wall-Mounted Plate |
Wall-mounted using optional |
|
Power Cable |
1.5M |
|
Desktop Stand |
Desktop installation optional |
|
Touch Pen |
1 PCS |
|
|
|
|
Manual/Warranty Card |
Each 1 PCS |
|
|
|
|
